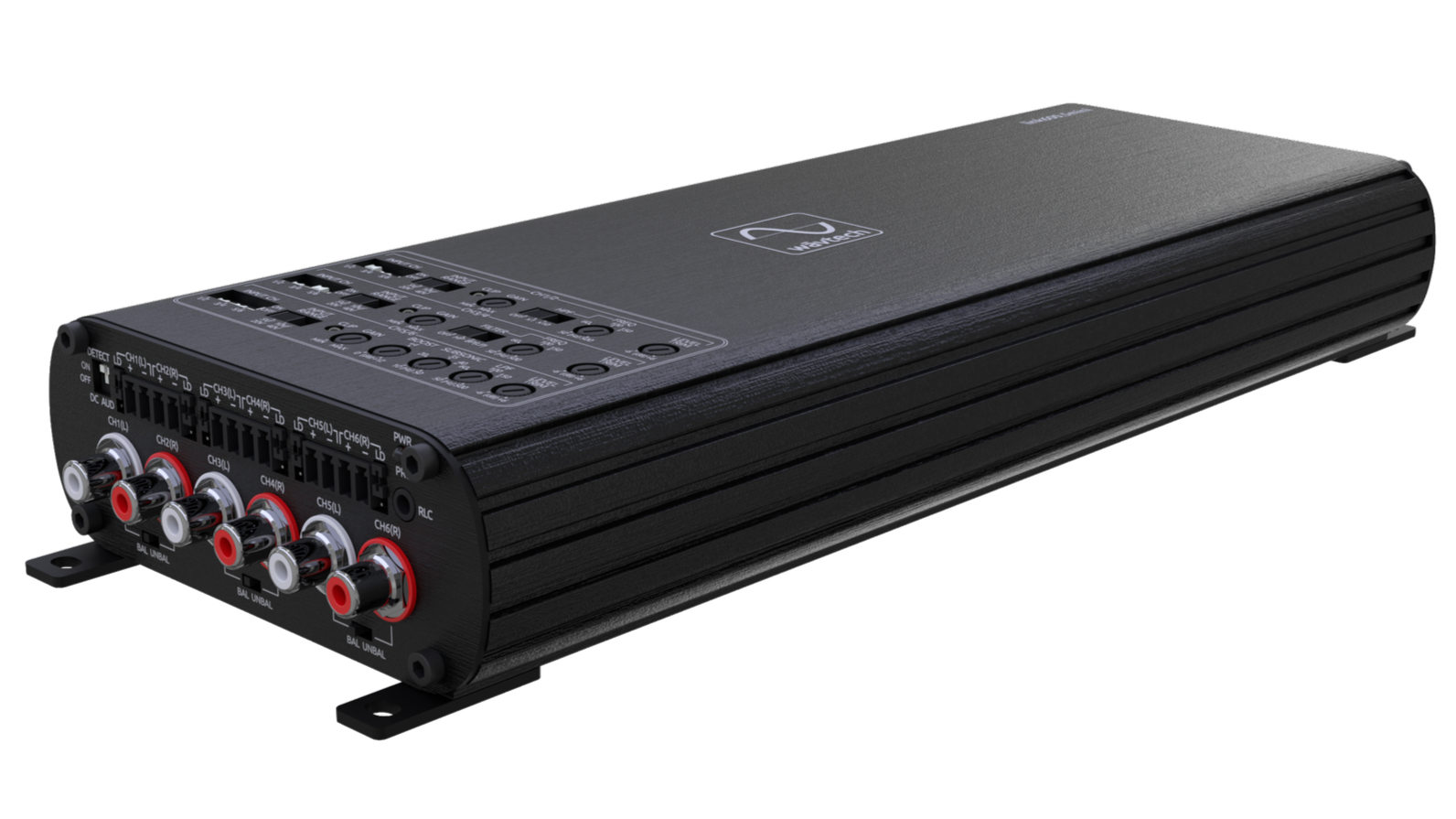

link600.5mini
When you need a complete system amplifier, but space is at a premium, the link600.5mini is the solution. With a footprint of just 11.1”x4.5”x1.66” it will fit in places most 5-channel amps will not. Even though it is small, we didn’t skimp on features. After all, it is still a Wāvtech amp. The link600.5mini features built-in summing for up to 6-channels of input, so you won’t need to purchase an external processor in applications where a full range signal is not present. It is compatible with Start/Stop systems and it is EV Ready.
The link600.5mini produces 75 watts RMS x 4 @ 2 ohms, while channel 5 produces 300 watts RMS @ 2 ohms to power your subwoofer. Like all Wāvtech amplifiers, the link600.5mini has built-in adaptive loading and can accept up the 40V of input. It has a 12dB per octave crossover on the 4 main channels plus a 24dB crossover with subsonic filter and bassEQ on the mono channel. The optional linkRC can be used to control the level of the subwoofer from the front of the vehicle.
link600.5mini Features
600 Watt 5-Channel Amplifier
Main Channels
50 watts x 4 @ 4 ohms
75 watts x 4 @ 2 ohms
150 watts x 2 @ 4 ohms BTL
Subwoofer Channel
200 watts x 1 @ 4 ohms
300 watts x 1 @ 2 ohms
Small Footprint Only 11.1”x4.5”x1.65”
Variable HP Crossover (-12dB/oct) with 1x/10x CH1/2
Variable HP/BP/LP Crossover (-12dB/oct) CH3/4
Variable Low-Pass Crossover (-24dB/oct) CH5
Variable Subsonic Filter (-24dB/oct) CH5
Adjustable bassEQ CH5
Remote Level Control (RLC) w/Optional linkRC
Active Thermal Management
Start/Stop System Compatible
EV Ready
Adaptive OEM Load Technology
40V Input Capability

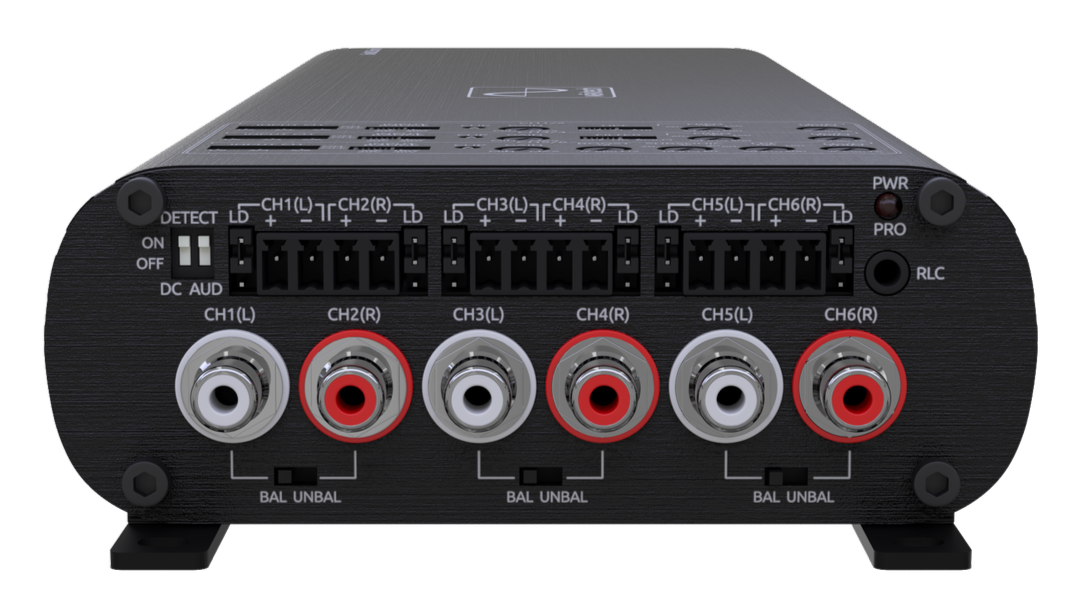

Differential Balanced Inputs
Variable Gain Adjustment w/Clip LED
Auto Turn-On via DC-Offset or Audio Signal Detect
Adaptive OEM Load Technology
Locking Detachable Hi-Level Speaker Terminals

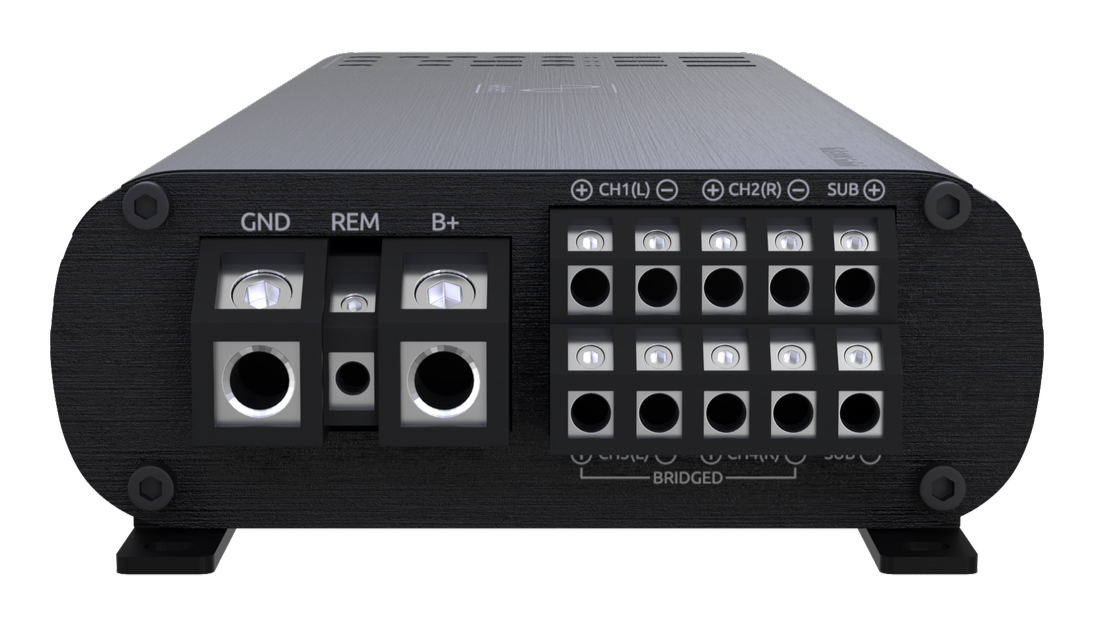

4 Gauge Power/Ground Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting tabs
link600.5mini Specifications
Input Sensitivity
SPK --------------------------- 1-20Vrms, 2-40Vrms
RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms
Max Input Voltage (SPK) ------ 40Vrms
Frequency Response ----------- (+0/-3dB)
Main Channels ------------ <10Hz to >45kHz
Sub Channel --------------- <10Hz to >500Hz
THD+N ------------------------------- <1% at rated power
S/N ------------------------------------ (1W, 4Ω)
Main Channels ------------- >80dBA
Sub Channel ---------------- >75dBA
