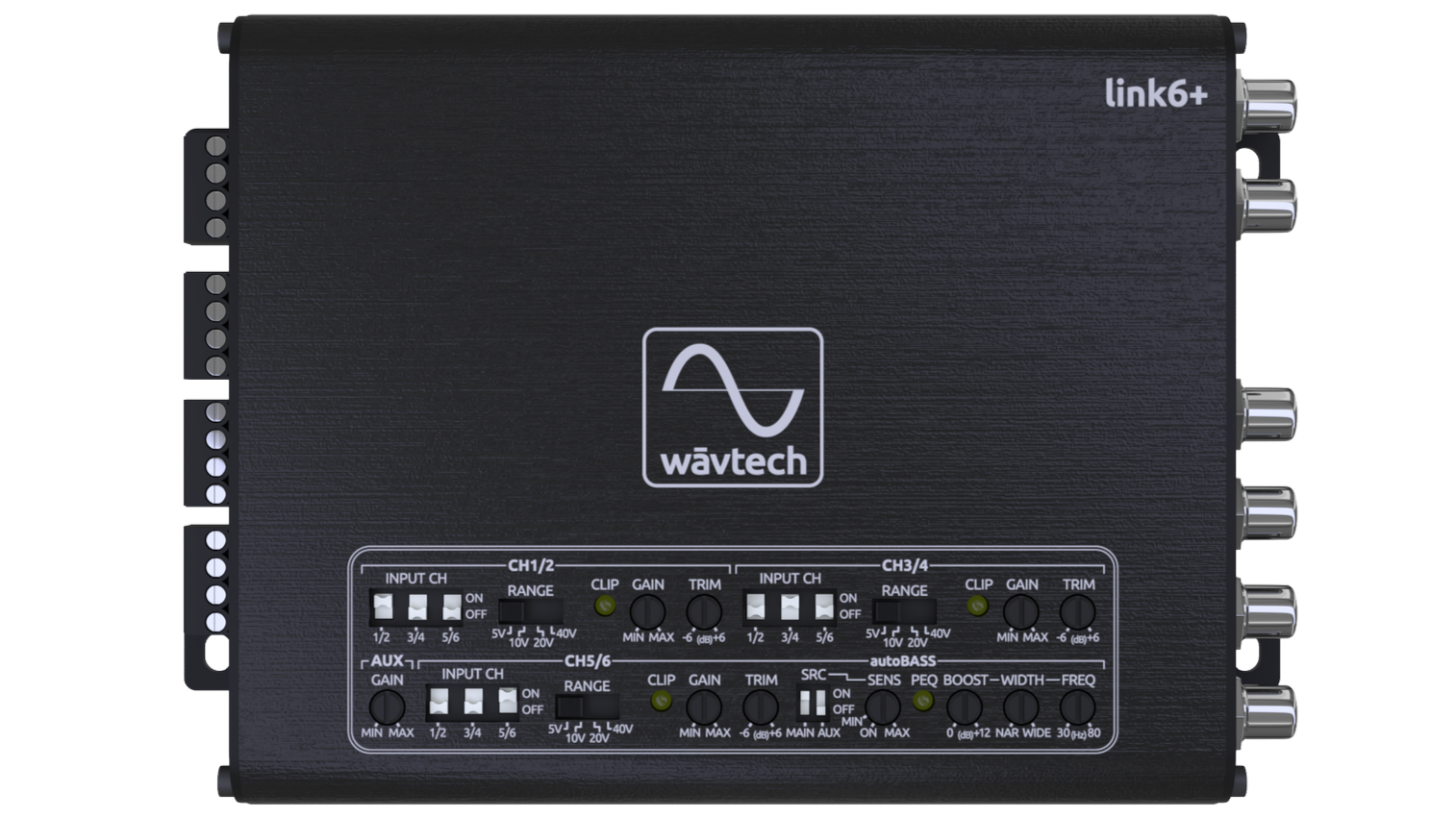

link6+
6-Channel LOC w/autoBASS, Matrix Summing and Remote
When upgrading your audio system in a typical front, rear and subwoofer set-up, the link6+ is the perfect tool for the job. Getting its input from your factory stereo’s front and rear speaker signal, it can provide front, rear and subwoofer outputs for your aftermarket amplifier or amplifiers.
Some factory audio systems require summing when adding aftermarket amplifiers, because no full range signal is present. The link6+ utilizes our industry leading matrix summing to address this. You can assign any input channel to any output for maximum flexibility. In addition, Wāvtech has the only analog summing devices on the market allowing full range signal from all outputs.
Many factory systems have protection against blowing speakers. This is called bass roll-ff. While this is helpful for protecting those factory speakers, it is a real problem when you are adding higher quality aftermarket components. Wāvtech’s patent pending autoBASS circuit solves this probelm. The link6+ also has a PEQ for fine tuning your systems subwoofer.
For added flexibility, the link6+'s multi-function remote provides unique configurations, based on the specific application requirements of your system. It controls fader , subwoofer level, or as a master volume in more complex installations.
link6+ Features
6-Channel Line Output Converter
6-Channel Matrix Summing Processor (6-in/6-Out)
Bass Roll-off correction via autoBASS (patent pending)
Parametric EQ (PEQ)
Multi-Function Remote Level/Source Control
Master Volume Control
Fader Control
AUX Volume Control
Independent CH5/6 Level
Source/Function Select
AUX 3.5mm Input
2/4/6ch Input Select (Direct, Copy or Sum)
Start-Stop Vehicle Compatible
Matrix Summing with +/-6dB Level Trim
Never Zero Ch5/6 Output with Front & Rear Input
Adaptive OEM Load Technology
Differential Balanced Inputs
Low Impedance Outputs
Variable Gain Adjustments w/Clip LEDs
Auto Turn-On via DC-Offset or Audio Signal Detect
Generated +12V Remote Output

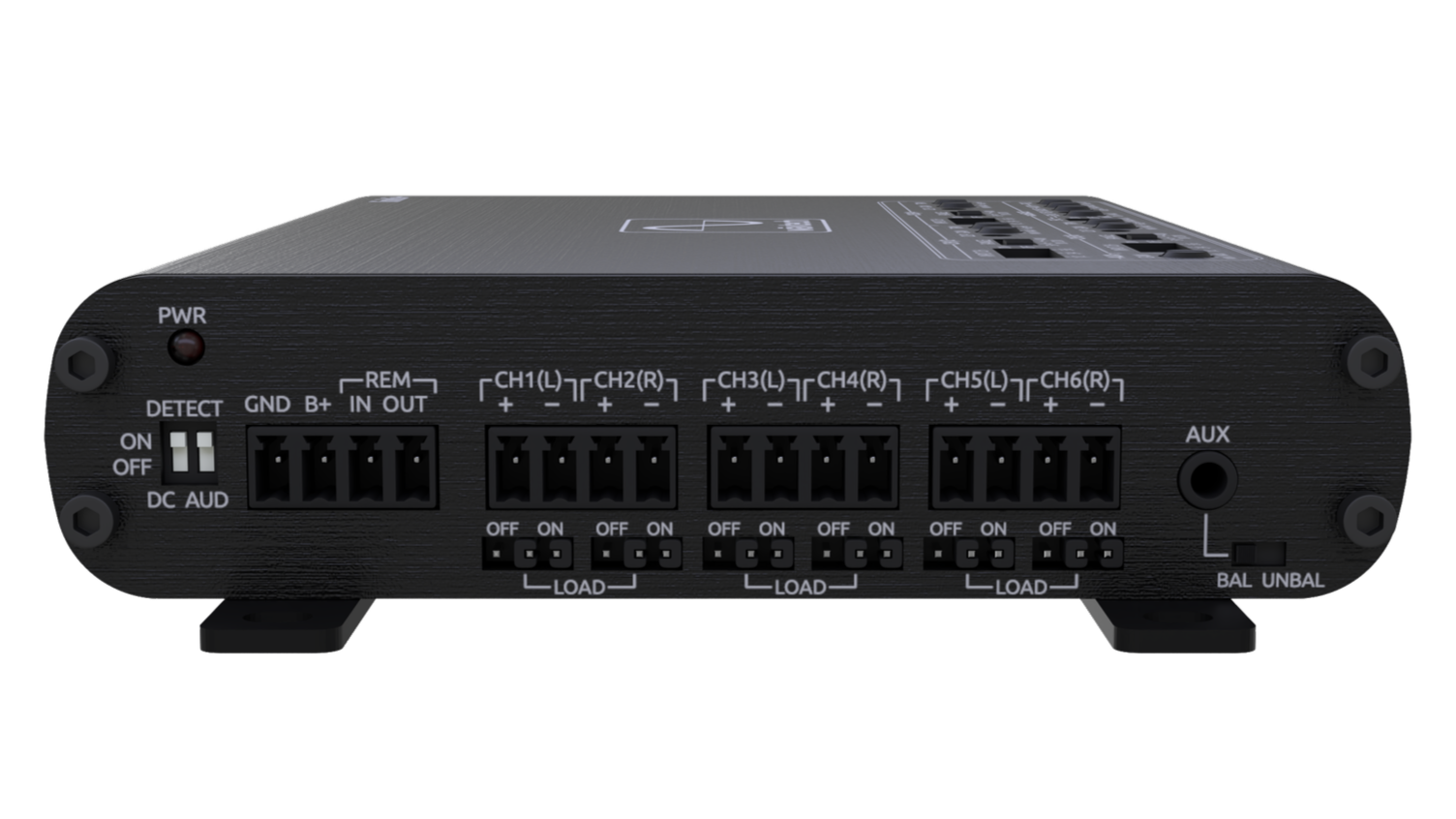

Locking Detachable Power/Speaker Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting Tabs
link6+ Specifications
Output Voltage (Max)---------- >10Vrms
Output Impedance -------------- <50Ω
Input Sensitivity
SPK ---------------------------- 2-20Vrms, 4-40Vrms
AUX ---------------------------- 0.5-5Vrms
Max Input Voltage (SPK) ------- 40Vrms
Frequency Response ------------ <10Hz to 100kHz
THD+N (SPK/AUX) ---------------- <0.05% /<0.05%
S/N (SPK/AUX) --------------------- >114dBA />113dBA
Turn-On Trigger ------------------- +12V, DC-offset & Audio Detect
Generated +12V Output ------- >500mA
Chassis Dimensions -------------- 1.1”x4.7”x5.8” (29x120x148mm)
