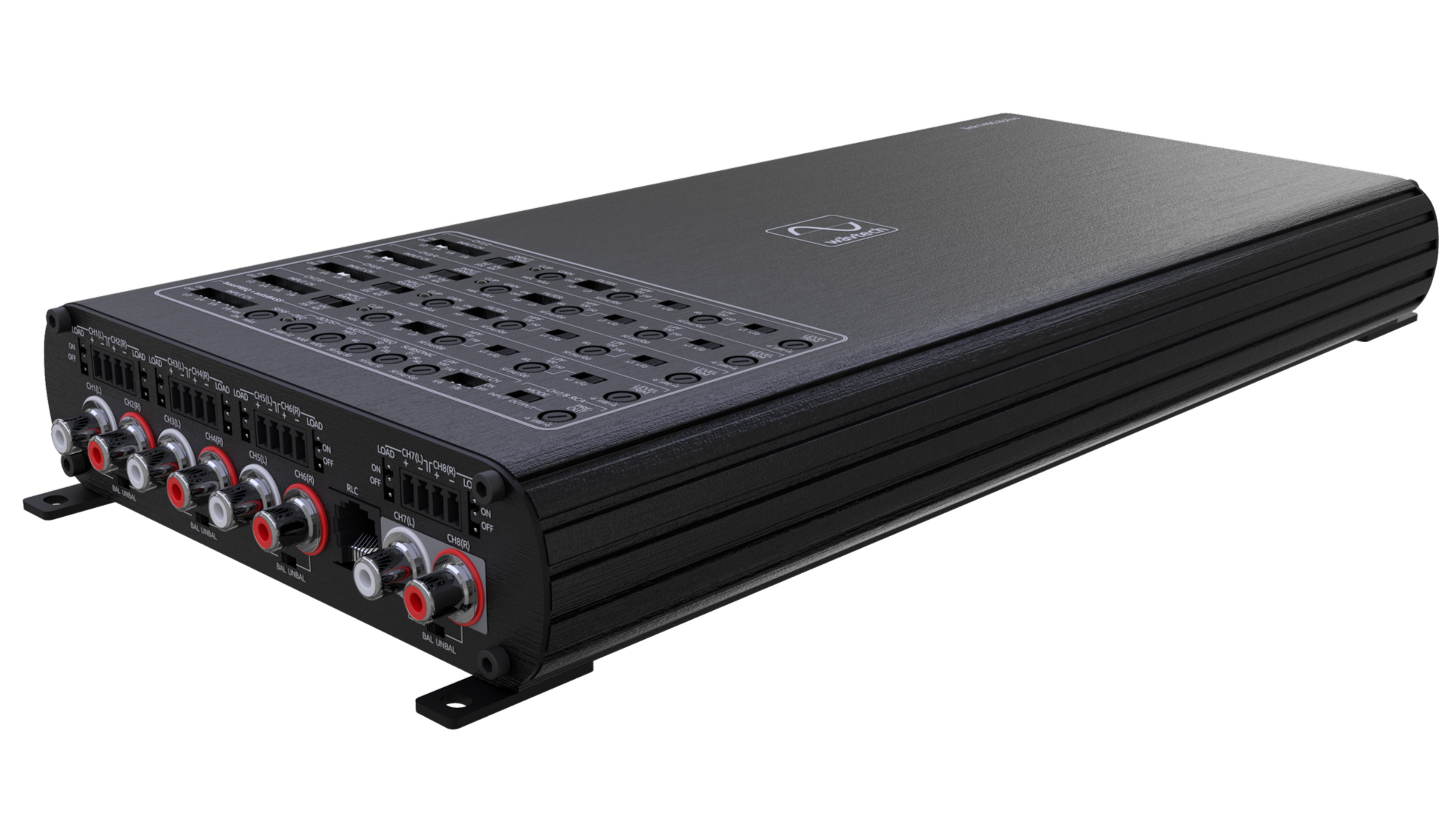

link1400.8plus
The link1400.8plus is the total package amplifier. It can power an entire system without limitations on features or performance. We start with 8-channels of input, so you can do a 4-way set up with a single amplifier. We are introducing matrix summing for the first time in a non-DSP amp. This means you can assign any input to any output for total flexibility over summing. The link1400.8plus has onboard highpass, bandpass and lowpass crossovers. This is the first amplifier to feature our patent pending autoBASS circuit that corrects bass roll-off.
We can’t forget about power. The link1400.8plus is rated at 175 watts RMS x 8 @ 2 ohms or 450 watts RMS x 4 @ 4 ohms BTL. Wāvtech’s proprietary bassFREQ processor with 24dB crossover, subsonic filter and PEQ can be used on channels 5/6, 7/8 or combined 5/6/7/8. The channel 7/8 RCA input can be converted to a 10V RCA output to feed signal to an even more powerful subwoofer amplifier while still utilizing the bassFREQ preamp. Like all Wāvtech amplifiers, it is compatible with Start/Stop systems and is EV Ready. The optional linkRC can be used to control the level of the channels 5/6, 7/8 or 5/6/7/8 from the front of the vehicle.
link1400.8plus Features
1400 Watt 8-Channel Amplifier
Main Channels
100 watts x 8 @ 4 ohms
175 watts x 8 @ 2 ohms
450 watts x 4 @ 4 ohms BTL
Footprint Only 13.11”x6.5”x1.65”
Variable HP/BP/LP Crossover (-12dB/oct) on all channels
Patent Pending autoBASS Circuit to Correct Bass Rolloff
bassFREQ Processor CH5/6, 7/8 or Pre-Out
Variable LP Crossover (-24dB/oct)
Variable Subsonic Filter (-24dB/oct)
Adjustable Parametric EQ
Remote Level Control (RLC) w/Optional linkRC
Active Thermal Management
Start/Stop System Compatible
Adaptive OEM Load Technology
40V Input Capability

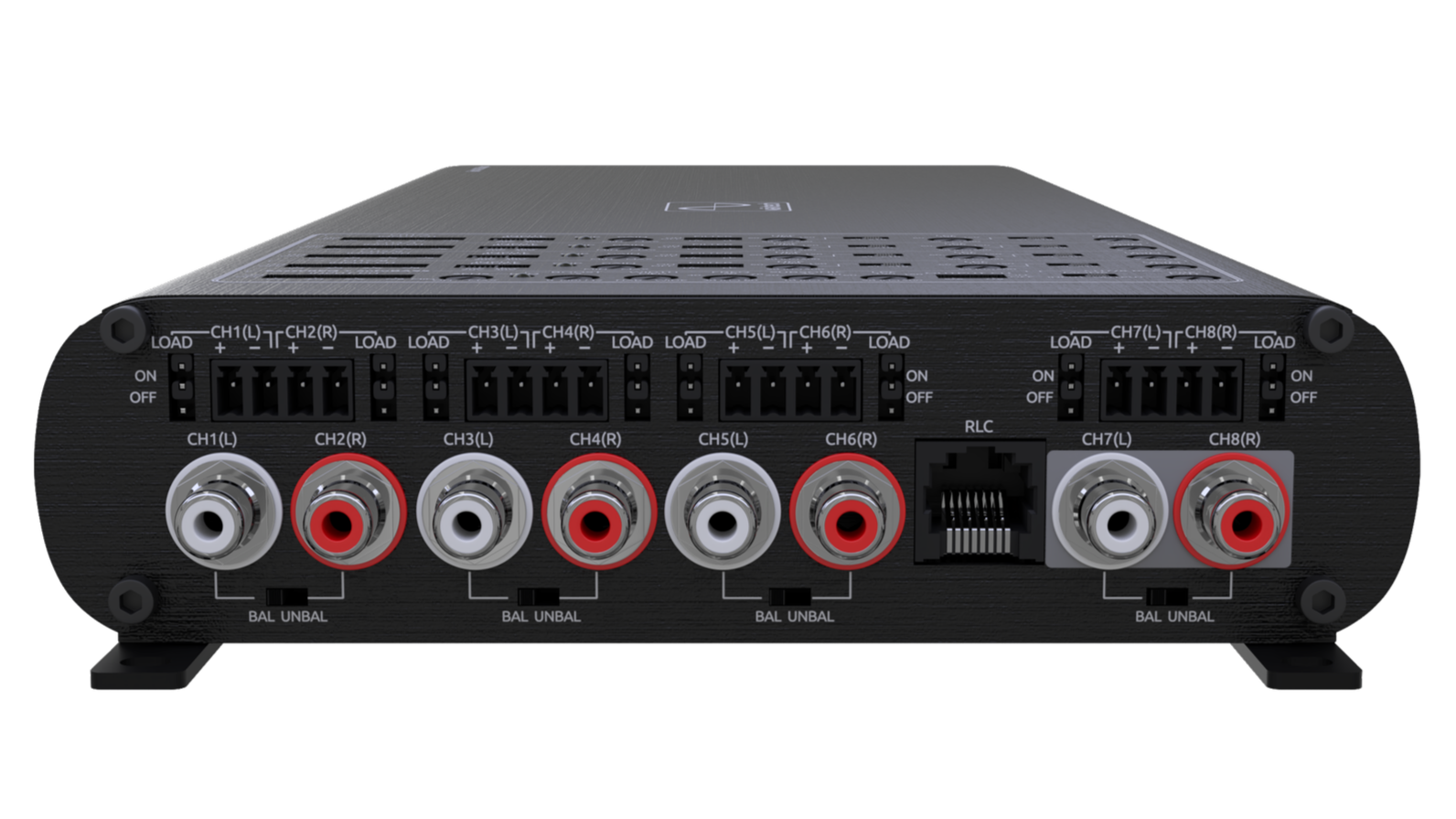

Differential Balanced Inputs
Variable Gain Adjustment w/Clip LED
Auto Turn-On via DC-Offset or Audio Signal Detect
Adaptive OEM Load Technology
Locking Detachable Hi-Level Speaker Terminals

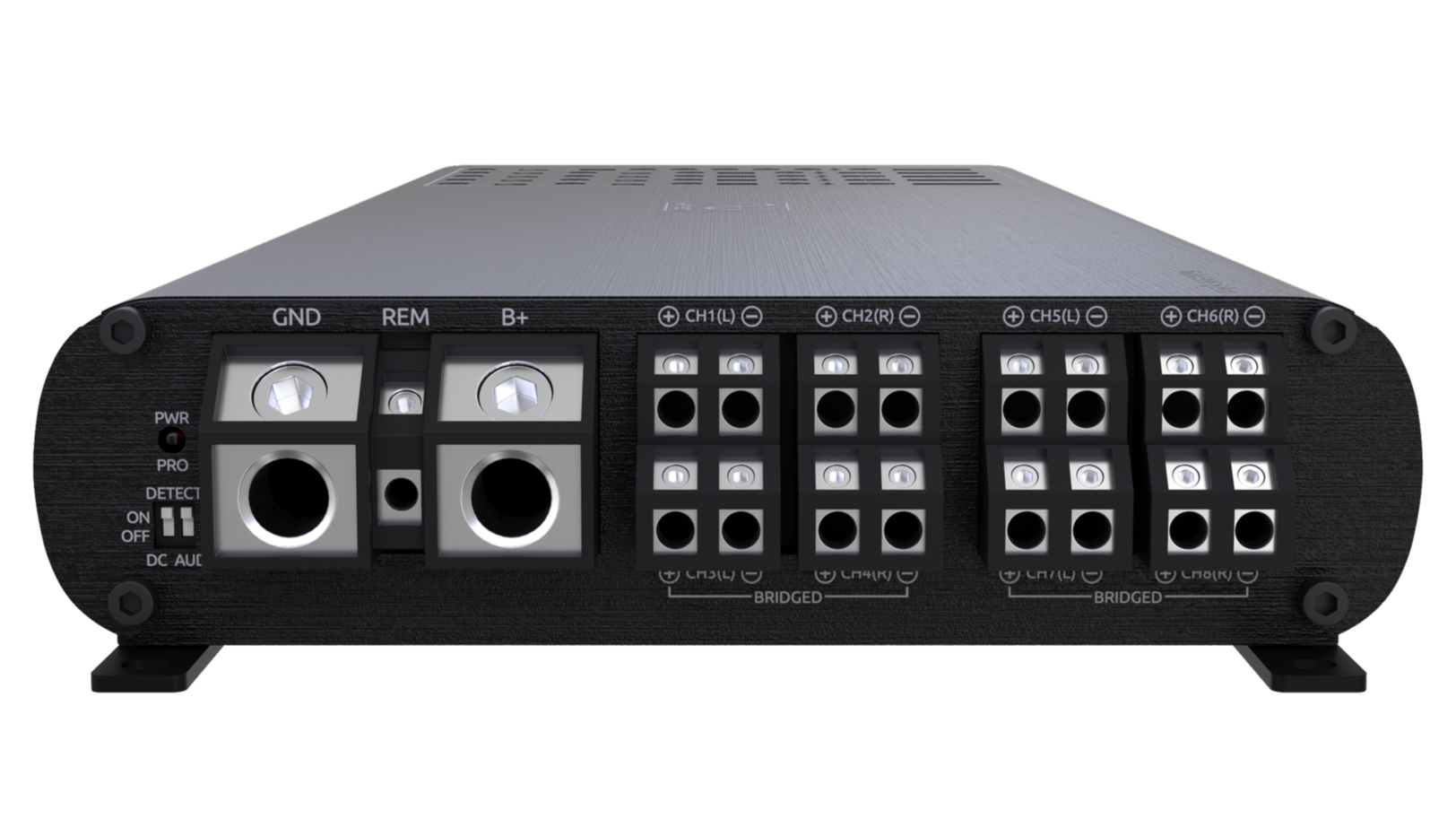

4 Gauge Power/Ground Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting tabs
link1400.8plus Specifications
Input Sensitivity
SPK --------------------------- 1-20Vrms, 2-40Vrms
RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms
Max Input Voltage (SPK) ------ 40Vrms
Frequency Response ----------- (+0/-3dB)
Main Channels ------------ <10Hz to >45kHz
Sub Channel --------------- <10Hz to >500Hz
THD+N ------------------------------- <1% at rated power
S/N ------------------------------------ (1W, 4Ω)
Main Channels ------------- >80dBA
Sub Channel ---------------- >75dBA
